Chapo village, Adraskan District, Herat
| Number of tap (valve) | Number of tap (valve) | Volume of water tank | Water consumption | Number of families | Cable type | Distance between well tank | Pump Watering | Name and type of pump | Number of solars |
| 150 W mono cryslaline silicon solar panel | 17 | 14m3 | 37m3 | 37 | 4×3 Iranian | 20 Meters | H50m-4.62m3 /h | 2 inch, Arian Pump | 30 |
Jangal Shakhi village, Adraskan District, Herat
| Number of tap (valve) | Number of tap (valve) | Volume of water tank | Water consumption | Number of families | Cable type | Distance between well tank | Pump Watering | Name and type of pump | Number of solars |
| 150 W mono cryslaline | 4 | 25 m3 | 18m3 | 81 | 4×3 Iranian | 200 Meters | H50m-1.5m3 /h | 1 inch, China | 6 |
Gala Toot Sharq village, Adraskan District, Herat
| Number of tap (valve) | Number of tap (valve) | Volume of water tank | Water consumption | Number of families | Cable type | Distance between well tank | Pump Watering | Name and type of pump | Number of solars |
| 150 W mono cryslaline | 22 | 25 m3 | 54m3 | 300 | 4×3 Iranian | 250 Meters | H50m-7.8m3 /h | 2 inch, Aria Pump | 32 |
Moosa Khil village, Adraskan District, Herat
| Number of tap (valve) | Number of tap (valve) | Volume of water tank | Water consumption | Number of families | Cable type | Distance between well tank | Pump Watering | Name and type of pump | Number of solars |
| 150 W mono cryslaline | 22 | 250 m3 | 44m3 | 245 | 4×3 Iranian | 420 Meters | H50m-7.8m3/ h | 2 inch, Aria Pump | 35 |
Ghal Kool village, Adraskan District, Herat
| Number of tap (valve) | Number of tap (valve) | Volume of water tank | Water consumption | Number of families | Cable type | Distance between well tank | Pump Watering | Name and type of pump | Number of solars |
| 150 W mono cryslaline | 6 | 14 m3 | 27 m3 | 150 | 4×3 Iranian | 160 Meters | H50m-2.2m3 /h | 2 inch, China Pump | 17 |
Kham SultanZai village, Adraskan District, Herat
| Number of tap (valve) | Number of tap (valve) | Volume of water tank | Water consumption | Number of families | Cable type | Distance between well tank | Pump Watering | Name and type of pump | Number of solars |
| 150 W mono cryslaline | 9 | 50 m3 | 27 m3 | 122 | 4×3 Iranian | 250 Meters | H50m-7.8m3 /h | 2 inch, Arian Pump | 32 |
Shaidayee Olya Village, Herat
| Number of tap (valve) | Number of tap (valve) | Volume of water tank | Water consumption | Number of families | Cable type | Distance between well tank | Pump Watering | Name and type of pump | Number of solars |
| 150 W mono cryslaline | 204 | 30 m3 | 54 m3 | 300 | 4×3 Iranian | 125 Meters | H130m-18.8m3 /h | 2 inch, Italian Pump | 46 |
The village back of Clinic of Adraskan District, Herat
| Number of tap (valve) | Number of tap (valve) | Volume of water tank | Water consumption | Number of families | Cable type | Distance between well tank | Pump Watering | Name and type of pump | Number of solars |
| 150 W mono cryslaline | 104 | 25 m3 | 54 m3 | 300 | 4×3 Iranian | 125 Meters | H50m-7.8m3 /h | 2 inch, Aria Pump | 32 |

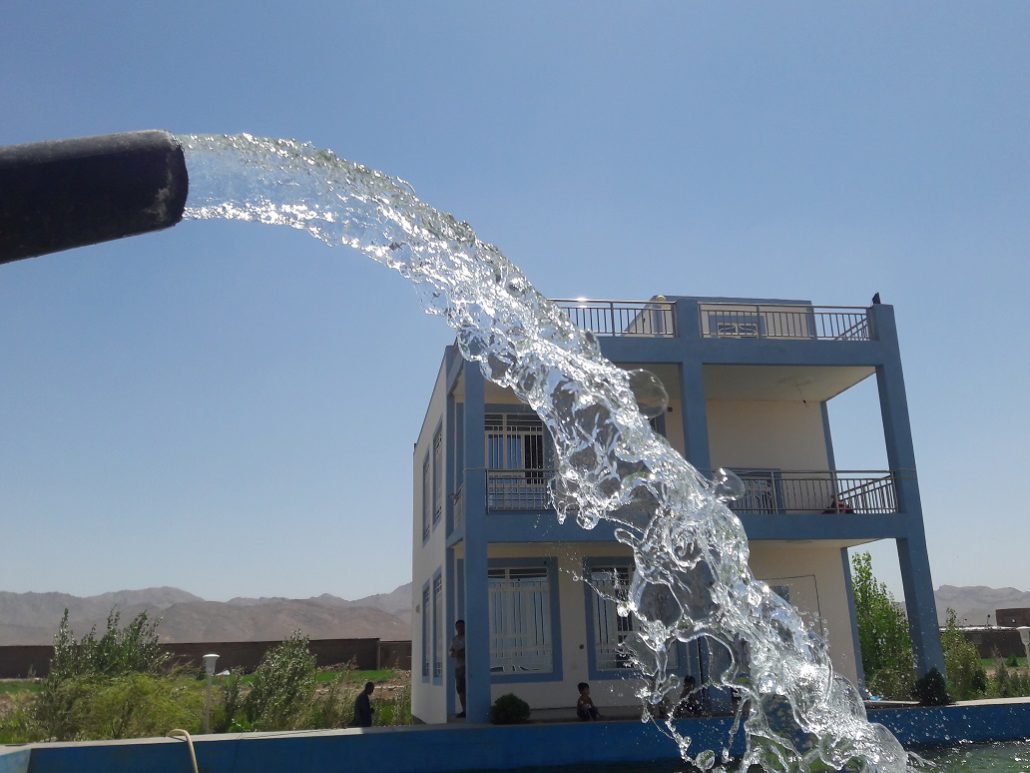

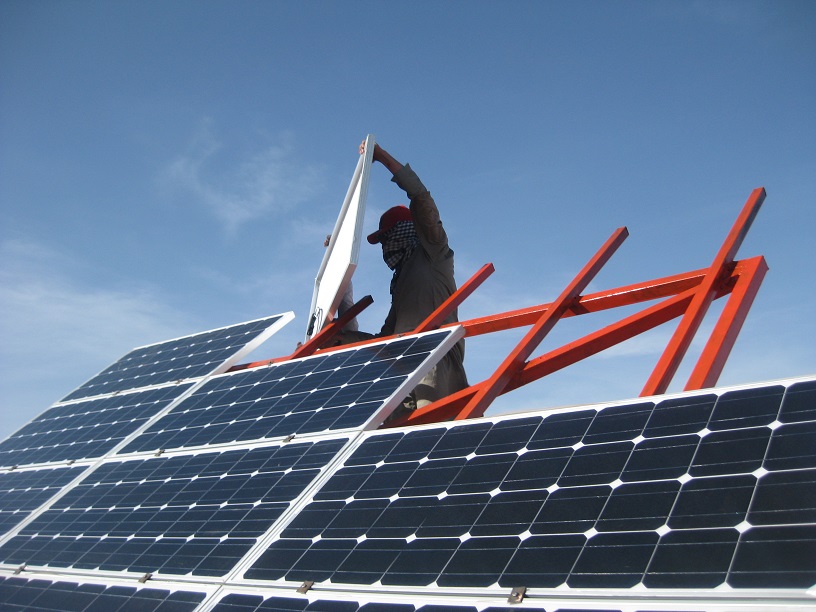

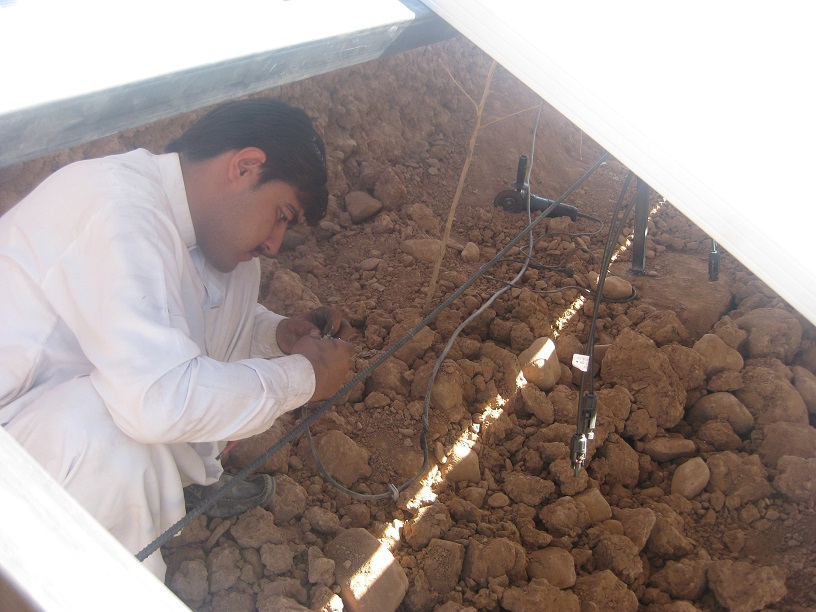

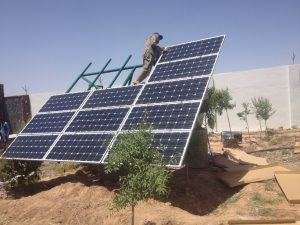

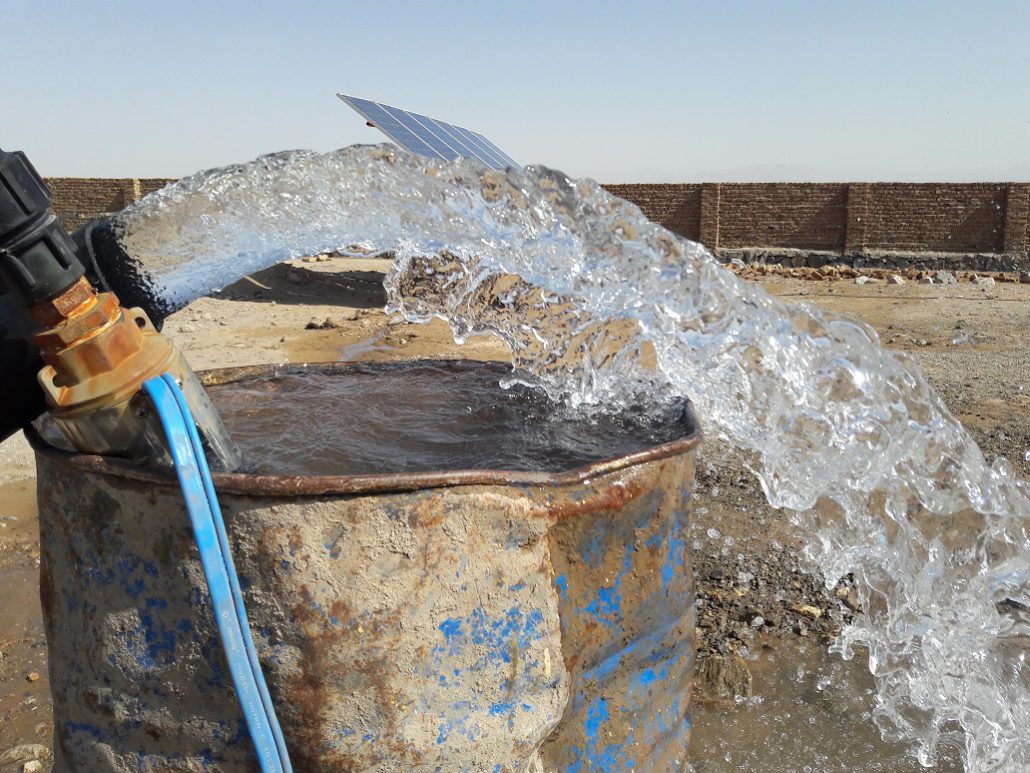

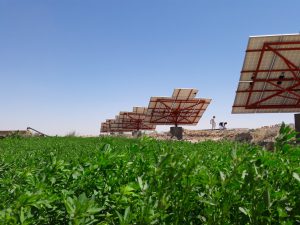

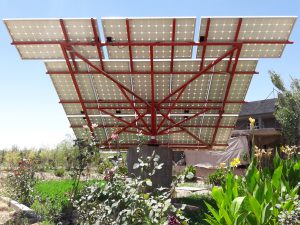

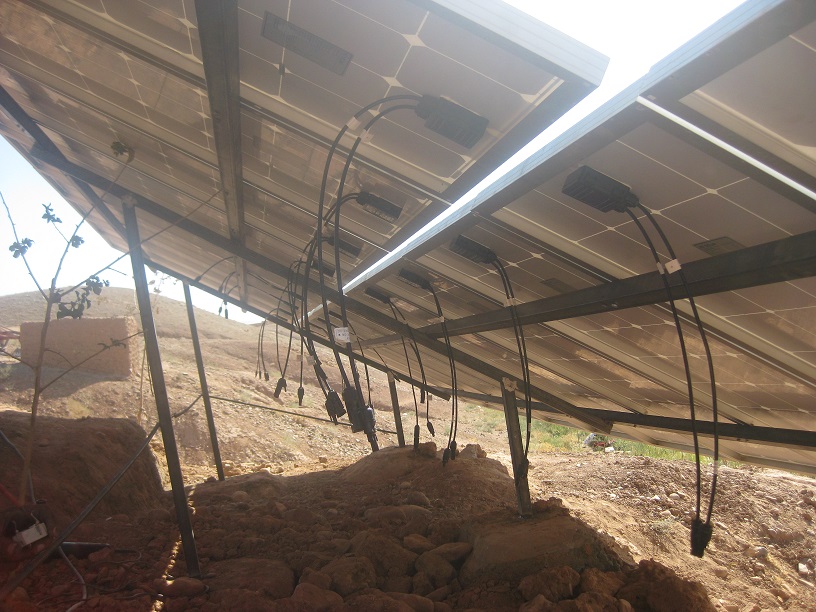

Projects Photos
